Trane Heat Pump Repair in Woodland Hills
The honest answer: Woodland Hills Trane HVAC repairs Trane heat-pump condensers across Woodland Hills, CA (91364), from Carlton Terrace to Valley Circle, fixing the same $150 to $450 capacitors as a straight AC plus reversing-valve and defrost-board faults unique to heat pumps; call (213) 513-5436 or book online. We are independent, not Trane-authorized.
Facts and figures
- Service area: Woodland Hills plus Walnut Acres, Warner Center, Carlton Terrace, and Valley Circle (91364, 91367, 91371).
- Heat-pump-specific parts we diagnose: reversing valve, solenoid coil, defrost board and sensor.
- Shared-with-AC failures: dual-run capacitor, contactor, Spine Fin coil leak, TXV.
- Variable-speed XV18 and XV20i heat pumps add Climatuff inverter and ComfortLink II diagnostics.
- Typical repair span: $109 diagnostic to roughly $2,000 for a communicating board or valve job.
- Hours: Weekdays 6am-8pm, emergency service on call; heat-wave no-cool calls get priority.
- Independent and not Trane-authorized; in-warranty compressors referred to a Trane dealer first.
How is heat-pump repair different from AC repair?
A heat pump is an air conditioner that can run backwards. The compressor, capacitor, contactor, and Spine Fin coil are the same hardware, so most no-cool calls diagnose identically. The difference is the parts that let it switch modes: the reversing valve and its solenoid coil, and on cold mornings the defrost board that briefly reverses the cycle to melt frost off the outdoor coil. When you have heat but no cool, or cool but no heat, that points us straight at the valve or the controls.
How do you diagnose a Trane heat pump that lost a mode?
The tell-tale on a heat pump is which mode failed, because that points straight at the part. Our sequence:
- Confirm the symptom. Heat but no cool, or cool but no heat, isolates the mode-switching hardware; no heat and no cool points back at shared parts like the capacitor or compressor.

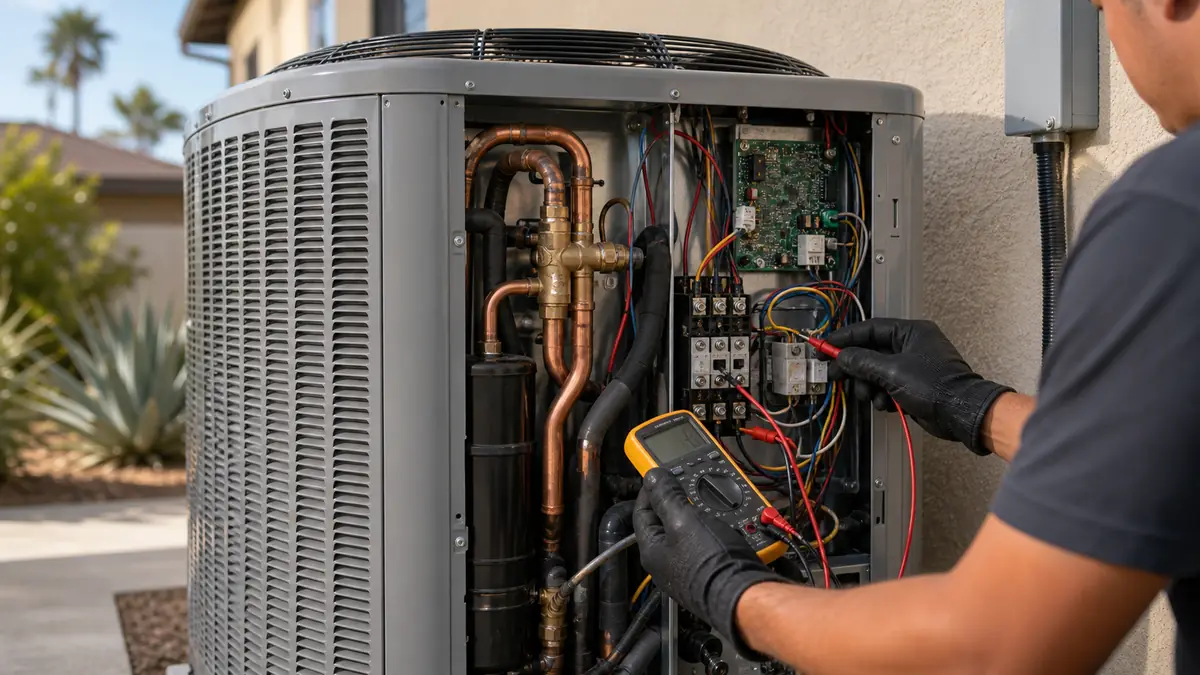

- Check the reversing valve. We energize and de-energize the solenoid coil and feel for the valve to shift; a hung valve or a dead coil locks the unit in one mode.
- Read the defrost control. On a unit icing in cool weather we verify the defrost board is timing a cycle and the coil sensor is reading temperature, not stuck.
- Meter the electrical. Capacitor microfarads, contactor pull-in, and compressor amp draw - the same checks as a straight AC.
- Gauge the charge. Low superheat or subcooling across the Spine Fin coil flags a leak that weakens both heating and cooling.
- Pull the alert. On an XV18 or XV20i heat pump we read the plain-language fault off the XL850 or XL824 and check the ComfortLink bus before quoting a board.
Which Trane heat pumps does this cover?
The same tier logic as the AC line, with heat-pump model series:
- XR single-stage heat pumps (4TWR family). The value workhorse on older ranch homes; simple controls, faults concentrate in the capacitor, contactor, fan motor, reversing valve, and defrost board.
- XL18i two-stage heat pump. Adds staging and ComfortLink-capable wiring; if it will not stage up on demand, suspect the comm bus or staging control.
- XV18 and XV20i variable-speed heat pumps (4TWV8 / 4TWV0). Climatuff inverter and full ComfortLink II communication; the inverter and communicating board carry the high-dollar risk, and these are the units that qualify for LADWP and SCE rebates when installed new.
What does Trane heat pump repair cost in Woodland Hills?
It depends entirely on which part failed. An electrical part is a few hundred dollars; a reversing valve or communicating board is into four figures. These are dated typical 2026 SoCal ranges, confirmed after we meter your unit.
| Symptom | Likely cause / first check | Typical 2026 cost lane |
|---|---|---|
| Warm air in cooling mode, summer | Stuck reversing valve or failed solenoid coil | $300 - $1,800 |
| No cool and no heat, condenser silent | Capacitor or contactor (same as AC) | $150 - $450 |
| Heats fine, will not cool (or reverse) | Reversing-valve fault or control board | $400 - $2,000 |
| Iced outdoor coil in cool weather | Defrost board or sensor not cycling defrost | $300 - $900 |
| XL850 reads comm loss with outdoor unit | ComfortLink II wiring fault or communicating board | $400 - $2,000 |
| Low charge, weak both modes | Spine Fin leak; leak search and recharge | $225 - $1,500 |
Breaking the band down: the diagnostic runs about $109 to $139 and credits toward most repairs. A capacitor or contactor is $150 to $450, mostly trip and labor. The reversing valve splits two ways - a failed solenoid coil is a cheap, quick swap, but replacing the valve body itself means recovering the refrigerant, unsoldering the valve, brazing in the new one, evacuating, and weighing the charge back in, which is why it lands in the $300 to $1,800 lane. A defrost board or sensor is $300 to $900. A Spine Fin leak search and recharge is $225 to $1,500, and a ComfortLink communicating board is $400 to $2,000. The Climatuff compressor is the four-figure outlier at $1,200 to $3,500, lower if it is still inside Trane's warranty and you pay labor only.
What faults do variable-speed Trane heat pumps throw?
On an XV18 or XV20i heat pump, the Climatuff inverter and the ComfortLink II system carry most of the high-dollar faults. Instead of a numeric code on the unit, the XL850 or XL824 wall control shows a plain-language alert - for example, loss of communication with the outdoor unit, which usually traces to the 4-wire comm bus, a water-damaged board, or low line voltage. A clean read of that alert saves chasing the wrong part. Our ComfortLink II controls page walks through the comm faults in detail.
Is it worth repairing an older Trane heat pump here?
The repair-vs-replace math runs the same way here: when the fix climbs past half a new system and the unit has already cleared 10 to 12 years, replacement tends to come out ahead - all the more so because a fresh SEER2 heat pump may open the door to LADWP or SCE rebates. Quote a reversing valve on a 14-year-old condenser and that is frequently the cue to price a changeout instead. We spell out the whole calculation on the installation page.
Common questions
Why is my Trane heat pump blowing warm air in cooling mode?
In a Woodland Hills summer the usual causes are the same as on a straight AC - a failed capacitor, low charge from a Spine Fin leak, or a dirty coil - plus one heat-pump-specific fault: a reversing valve that is stuck or not switching to cooling. We confirm which by metering the unit and checking valve operation, not by guessing.
Do heat pumps even make sense in mild Woodland Hills winters?
Yes, and that is part of the appeal. Our winters rarely drop near freezing, so a Trane heat pump heats efficiently most of the season without the cold-climate penalty other regions face. The bigger value here is cooling: a heat-pump condenser is the same hardware that carries you through 60-plus 90 F-plus days a year.
What is a reversing valve and is it expensive to replace?
The reversing valve flips refrigerant flow so the same unit cools in summer and heats in winter. When the solenoid coil fails or the valve sticks, you lose one mode. The coil is cheap; replacing the valve body itself is labor-intensive because it must be unsoldered and the system recovered and recharged, which pushes it into the higher repair lane.
My Trane heat pump is under warranty - can you still repair it?
If the compressor or coil is inside Trane's registered warranty, go to a Trane-authorized dealer first to keep that coverage intact. We are independent. Out of warranty, on a second opinion, or for the electrical and control faults that warranties often exclude, that is where we work.
Why does my Trane heat pump ice up the outdoor coil?
In heating mode a heat pump pulls heat from outside air, so the outdoor coil naturally frosts and the system runs a defrost cycle to clear it. A thin frost that melts on schedule is normal. A coil that ices solid and stays that way usually means a failed defrost board or sensor, a stuck reversing valve, or low charge from a Spine Fin leak - we read the defrost timing and the charge to tell which.
Should I run my Trane heat pump for heat or keep the gas furnace?
In Woodland Hills winters a Trane heat pump heats efficiently almost the whole season, since temperatures rarely approach the point where capacity drops off. Many homes here run a dual-fuel setup - the heat pump handles mild days and the gas furnace covers the few cold snaps. We can set the changeover point on the XL850 so the system picks the cheaper source automatically.
