Trane Fault Codes in Woodland Hills
The honest answer: Trane shows faults three ways - furnace LED flash codes, plain-language alerts on the XL850 or XL824, and no code at all on non-communicating XR condensers we diagnose by meter - and Woodland Hills Trane HVAC decodes all three across Woodland Hills, CA (91364, 91367, 91371), so call (213) 513-5436 or book online to schedule.
Facts and figures
- Trane gas furnaces flash a numeric LED code through the blower-door sight glass.
- Communicating XV and XL systems show plain-language alerts on the XL850 / XL824 and in Trane Home.
- Non-communicating XR and XL condensers have no code; they are diagnosed electrically.
- The most common furnace code we see is 4 flashes - an open high-limit from restricted airflow.
- The most common communicating alert is loss of communication with the outdoor unit.
- Service area: Woodland Hills 91364, 91367, 91371; hours Weekdays 6am-8pm, emergency service on call.
- Independent and not Trane-authorized.
What do Trane furnace LED flash codes mean?

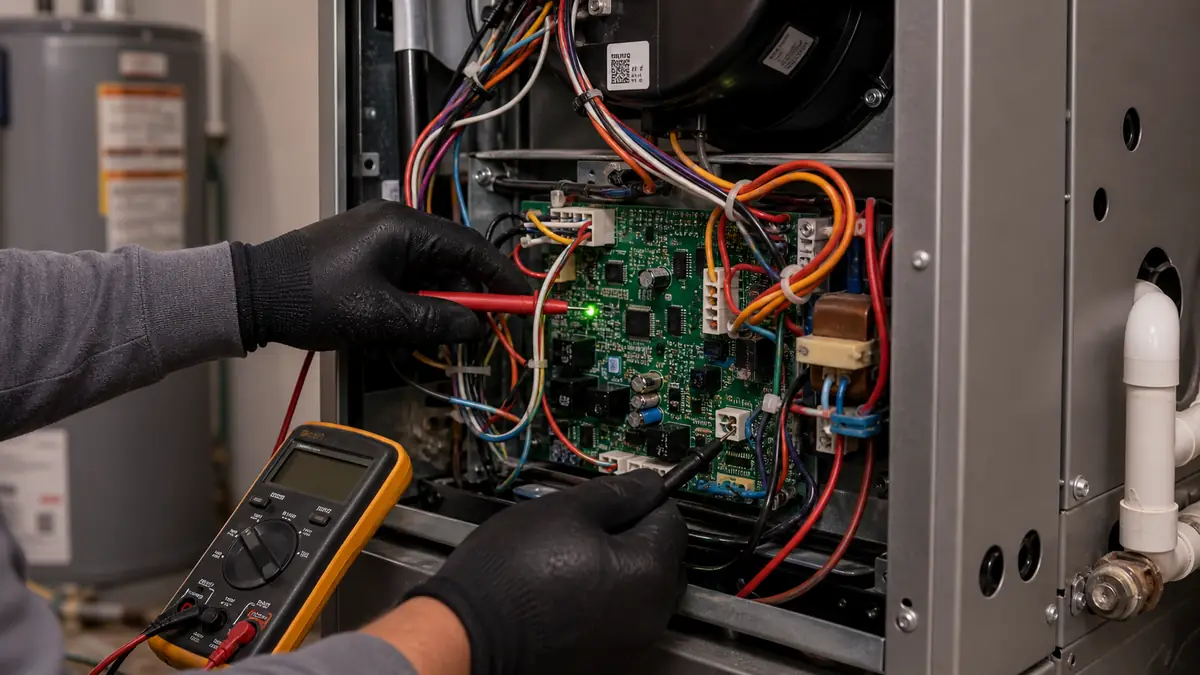

On a Trane S-series or XR/XV/XL furnace, the control board blinks a numeric code you read through the sight glass on the blower door. Count the flashes, pause, repeat. Here are the codes we decode most often on Woodland Hills furnaces. These point to a likely component, but the actual fix needs metering - a pressure-switch code, for example, can be the switch, the inducer, or a blocked vent.
| Flashes | Meaning | Likely component |
|---|---|---|
| 2 flashes | System lockout (failed ignition retries) | Igniter, flame sensor, or gas supply |
| 3 flashes | Pressure switch did not close / reopened | Inducer, blocked vent, or pressure switch |
| 4 flashes | Open high-limit (overheating on low airflow) | Filter, blower, or closed ducts |
| 5 flashes | Flame sensed when none expected | Gas valve or control board |
| 7 flashes | Gas valve circuit fault | Gas valve or wiring |
| 8 flashes | Low flame sense | Dirty flame sensor or grounding |
| 9 flashes | Hot-surface igniter circuit | Igniter or control board |
What do the ComfortLink plain-language alerts mean?
Communicating XV20i, XV18, and XL18i systems skip blink codes and write the problem on the XL850 or XL824 screen in plain English. That is helpful, but the message names the symptom, not always the part. Here are the common alerts and where they usually lead, with dated typical 2026 cost lanes confirmed by metering.
| Alert | Likely cause / first check | Typical 2026 cost lane |
|---|---|---|
| Loss of comm with outdoor unit | 4-wire ComfortLink bus, terminal, or condenser board | $150 - $2,000 |
| Indoor / outdoor board mismatch | Failed communicating board after a surge | $400 - $2,000 |
| Low line voltage alert | Utility sag, loose lug, or transformer | $150 - $600 |
| No blower on a valid call | ECM module or motor (no LED, diagnose directly) | $450 - $2,300 |
For a full walkthrough of the communicating controls, see the ComfortLink II page.
What about a no-cool XR with no code at all?
This is the most common Woodland Hills scenario. A single-stage XR14 or XR16 condenser has no diagnostic display - when it will not cool, there is nothing to read. We diagnose it the old-fashioned way: meter the run capacitor against its rated microfarads, check the contactor for pitted points, verify 24V at the condenser, and read charge by superheat or subcooling. In this heat pocket the answer is usually a capacitor or contactor, both stocked on the truck. See AC repair for the cost lanes.
Which codes are safe to reset, and which are not?
A one-time nuisance lockout - a single ignition fault on a cold morning - often clears with a power cycle and does not return. But repeated lockouts are a warning: a furnace that keeps tripping on a pressure-switch or high-limit code may have a venting or overheating problem you should not mask by resetting it. When a code comes back, stop resetting and have it diagnosed.
Common questions
Where does my Trane show its fault code?
It depends on the equipment. A gas furnace flashes a numeric LED code through the blower-door sight glass. A communicating XV or XL system shows a plain-language alert on the XL850 or XL824 touchscreen and in the Trane Home app. A non-communicating XR or XL condenser usually has no code at all, so we diagnose it electrically with a meter.
My Trane furnace flashes 4 times - what does that mean?
Four flashes is an open high-limit switch, which typically means the furnace is overheating because airflow is restricted. The usual culprits are a clogged filter, a dirty blower wheel, or a closed-up duct system. Clear the obvious airflow restriction first; if it keeps tripping, the limit switch or blower itself may have failed and needs a tech.
Why does my XL850 say loss of communication with the outdoor unit?
The XL850 talks to the condenser over a 4-wire ComfortLink II bus. That alert points to a damaged or loose comm wire, a corroded terminal, a water-damaged or surge-damaged board, or low line voltage. It is often a cheap terminal or fuse, not the expensive board the message seems to blame, so we meter the bus first.
Can I clear a Trane fault code myself by resetting power?
A power cycle can clear a one-time nuisance lockout, like a single ignition fault, and the system may run fine afterward. But a code that returns is telling you something real - do not keep resetting a furnace that repeatedly locks out on a pressure-switch or limit fault, because you can mask a venting or overheating problem that matters for safety.
Related: ComfortLink II controls, AC repair, AC noises, and heat pump repair.
