Trane AC Installation in Woodland Hills

How do I choose the right Trane system for Woodland Hills?

Begin from the load rather than the sales brochure. A Manual J calc reads the heat your home truly gains - its square footage, insulation, the way the windows face, and how hard the afternoon sun hits the west rooms in a heat pocket. With that in hand, picking a tier is a question of comfort and monthly bill, not the SEER2 number alone. Here is where the Trane lineup falls for a typical valley install.

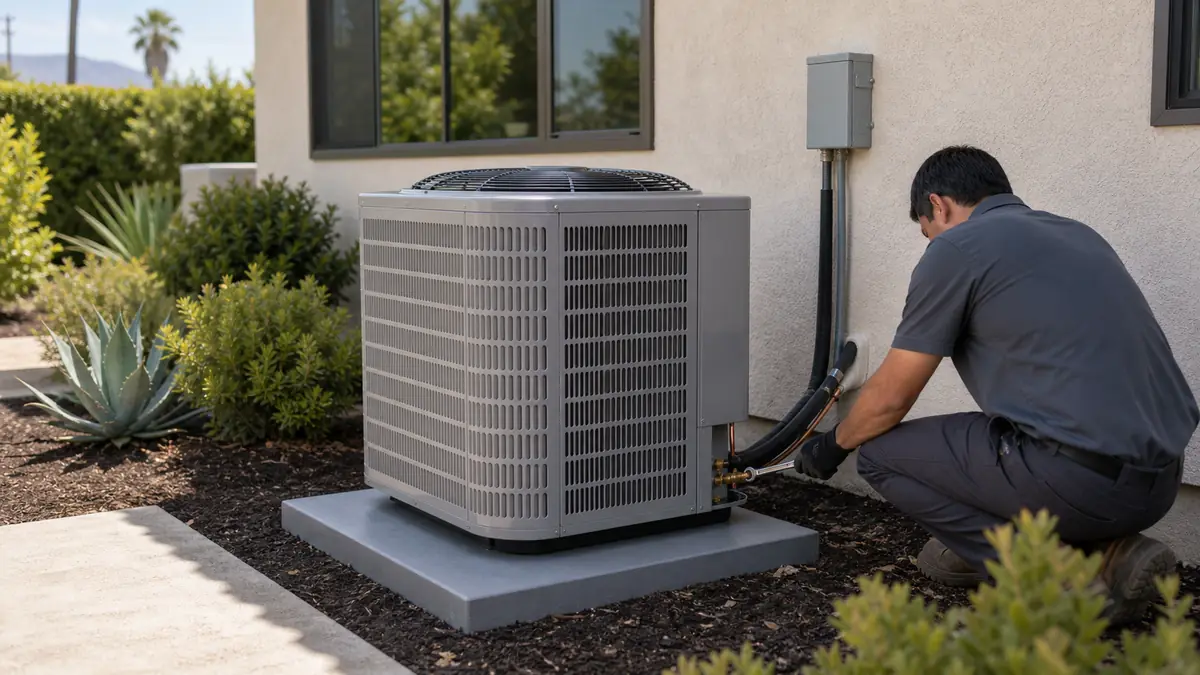

For a big South-of-the-Boulevard rebuild with rooms that swing from cool to roasting, the variable-speed XV20i earns its premium. For a tidy three-bedroom Walnut Acres ranch, an XL18i two-stage is often the value sweet spot.

How does a Trane installation actually go, step by step?

A proper changeout is a sequence, not a swap, and most of the value is in the steps a cheap install skips:

1. Load calculation. A Manual J reads square footage, insulation, window orientation, and infiltration to size the system in real tonnage instead of cloning the old nameplate.
2. Equipment match. We pair the Trane condenser to a matched indoor coil and blower so the rated SEER2 is actually achievable; a mismatched coil throws the efficiency away.
3. Permit and recovery. We pull the city permit, then recover the old refrigerant to EPA spec rather than venting it.
4. Set and connect. The new condenser goes on a level pad or stand, the line set is brazed under a nitrogen purge to keep the inside of the copper clean, and a new filter-drier goes in.
5. Evacuate. We pull the system into a deep vacuum (down toward 500 microns) to boil off moisture and non-condensables before it ever sees refrigerant.
6. Weigh in the charge. R-410A is weighed in to the Trane data-plate spec, then trimmed by superheat or subcooling - the Title-24 refrigerant-charge verification.
7. Set airflow. Blower airflow is dialed to the data plate and confirmed by fan watt draw, the Title-24 airflow verification.
8. Commission and verify. We confirm the temperature split, stage or modulation on a communicating system, and the XL850 or XL824 setup, then book the HERS test.

Cut the evacuation short or skip the charge verification and a brand-new variable-speed system will underperform from day one - and flunk inspection in August.

Should I repair or replace my current AC?

Lean toward replacement once a repair tops about half the price of a new system and the unit has passed the 10-to-12-year mark, or once the unit's age times the repair cost gets above roughly $5,000. Because Zone 9 duty cycles wear compressors down quicker than a coastal install does, a 15-year-old XR13 in Woodland Hills has really put in more life than the number on the calendar suggests. Take that as the opening line, then we settle it with a real diagnosis.

What does a Title-24 compliant install include here?

It goes well past setting a condenser in place. Inside Climate Zone 9 a split-system changeout normally calls for refrigerant-charge verification and airflow (fan watt draw) verification, and any work on the ducts usually brings duct sealing that a third-party HERS rater has to confirm. We take out the city permit, weigh the charge in to spec, dial the airflow to the Trane data plate, and book the HERS test. Cut those corners and that is precisely how a cheap install flunks inspection and falls flat come August.

What about ductwork in a 1960s ranch?

Often the hidden half of the job. Many Walnut Acres and Vista de Oro ranch homes still run the original undersized, leaky ducts, which strangle even a brand-new variable-speed system. If the static pressure is high or the ducts leak more than code allows, we seal or resize them so the new Trane can actually move its rated air. A correctly sized system on bad ducts is money half-spent. Duct work runs roughly $1,900 to $6,000 depending on how much of the run we touch. Read the sizing briefing for how this plays out.

What drives the price of a Woodland Hills install up or down?

The $5,000 to $16,000 spread is not arbitrary - it is the sum of a handful of cost drivers, and knowing them helps you read a quote. Tonnage and efficiency tier set the base: an XR value condenser sits at the bottom, an XV20i variable-speed heat pump at the top. Then the local add-ons stack on:

• Line-set routing. A short, accessible run is cheap; a long reroute up a South-of-the-Boulevard hillside to reach a condenser pad adds copper and labor.
• Ductwork. Sealing or resizing the original 1960s ducts adds $1,900 to $6,000 and often triggers HERS duct-leakage verification.
• Furnace or air handler. Replacing the matched indoor unit at the same time adds $3,000 to $7,500 for a furnace.
• Electrical. A gas-to-heat-pump conversion can need a heavier circuit or a panel upgrade.
• Permit and HERS. The city permit plus the third-party HERS field verification are real line items in Climate Zone 9.

Rebates pull the net cost back down. LADWP has reported heat-pump rebates up to roughly $2,500 per ton on qualifying high-efficiency systems, and SCE has reported around $1,000 per qualifying heat-pump HVAC system - but both run in funding phases that pause and reopen, so verify the current amount and status before you bank on it. The federal 25C credit is gone for 2026 installs.
